EinStar 3D Scanner

·      Handheld LED/Infrared Structured Light + VSCEL Lasers for Optimal Accuracy
·      Ability to scan in daylight!
·      Easy to scan People, Objects, and much more
·      Full colour texture capturing included

$1,687.88 excl GST

Availability: In stock (can be backordered)

For aStellarScanning Experience

The EinStar makes 3D scanning more affordable and accessible for everyone without compromising quality and speed.

You can digitise the world around you like never before!

Stable Outdoor Scanning

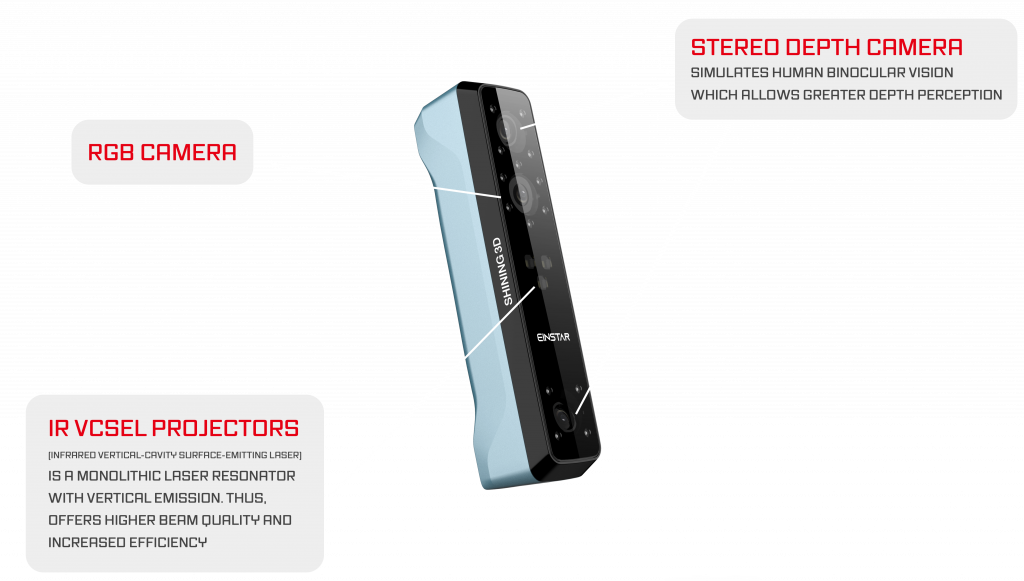

Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, EinStar can capture clear scan data in outdoor settings and in daylight.

1 Scanner, 3 Cameras + 3 Infrared Projectors

High Quality Data // Fast scanning

Collect high density point cloud data fast and easily with point distance up to 0.1mm. Scanning speed up to 14 FPS.

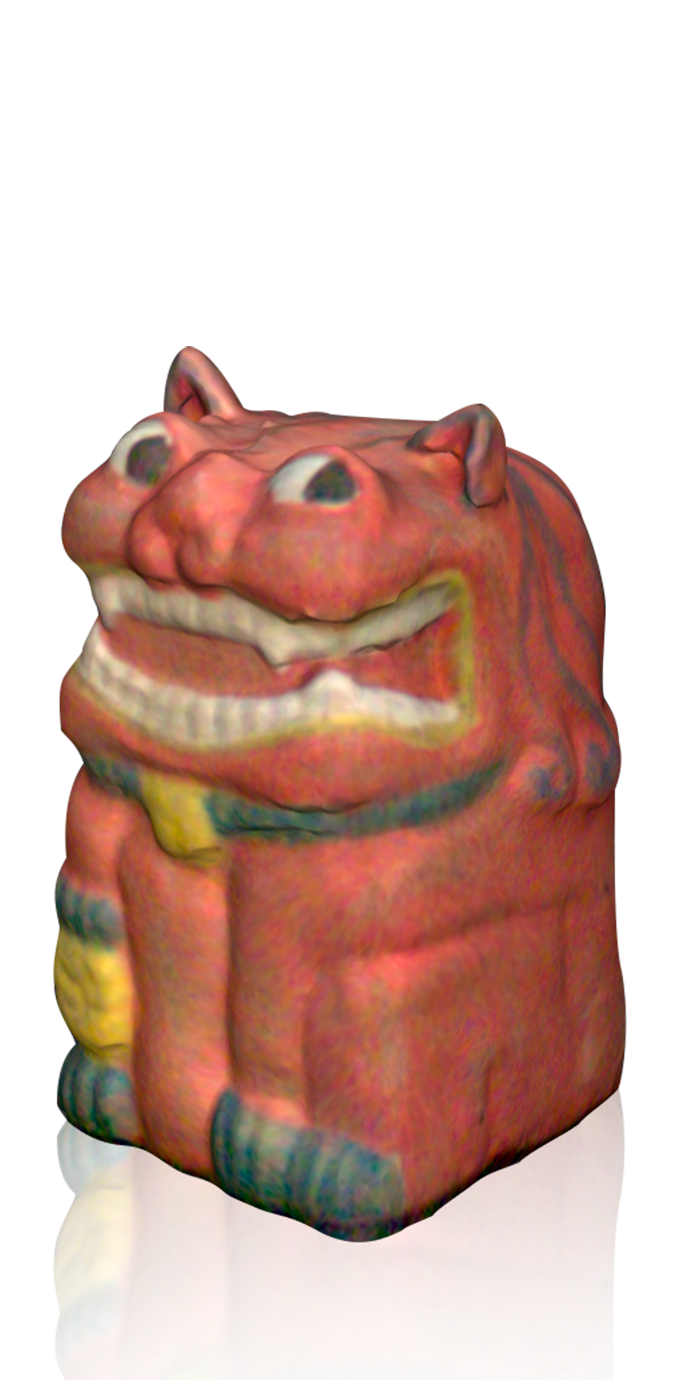

High Colour Fidelity

Full colour scanning with a built-in RGB camera. Collect accurate colour data for the perfect replica.

Comfortable for Eyes, Easy to Scan Hair

·No projector light during scanning process.
·Comfortable and safe for eyes.
·Turning on “Hair Mode” to get sufficient hair data for human scan and
improve the whole data completeness.

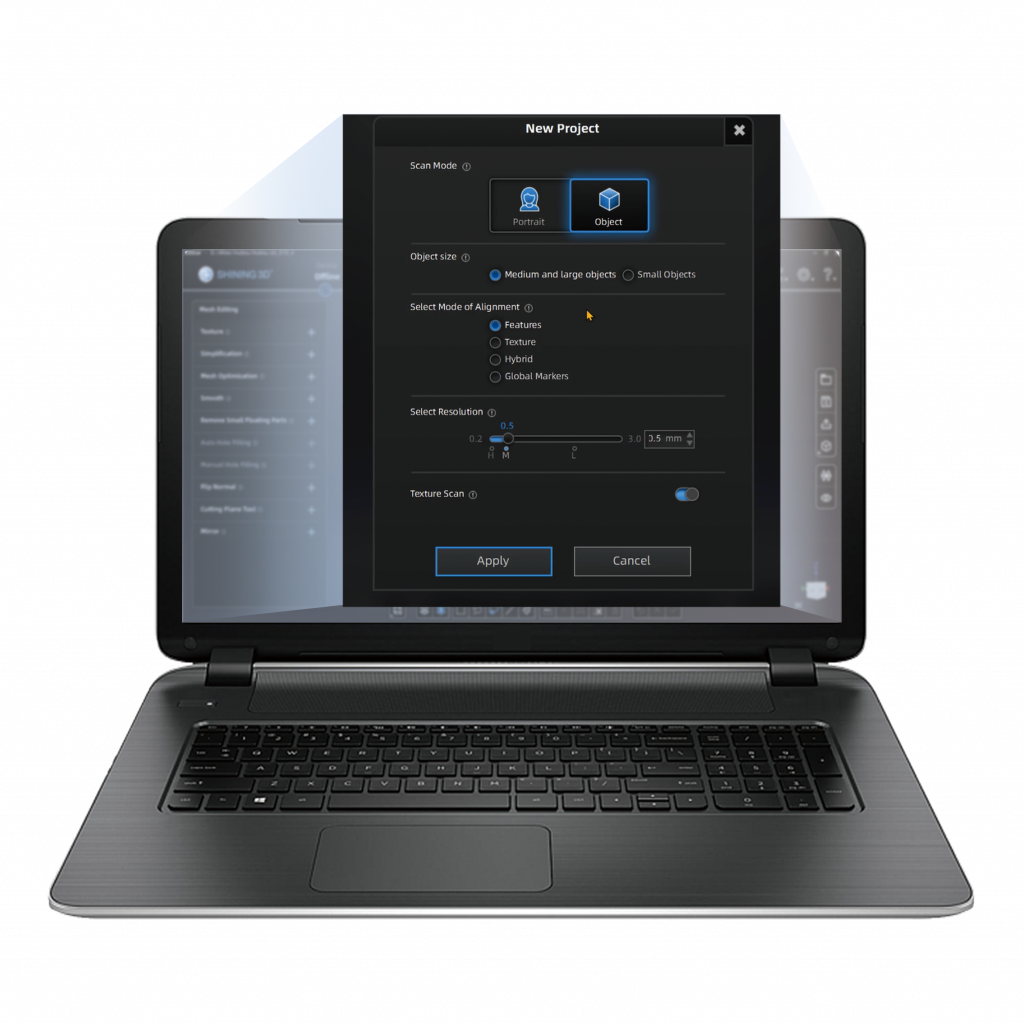

Streamlined User Experience

·Smart tracking performance
·Automatic alignment
·Intelligent algorithm

Easy to Use

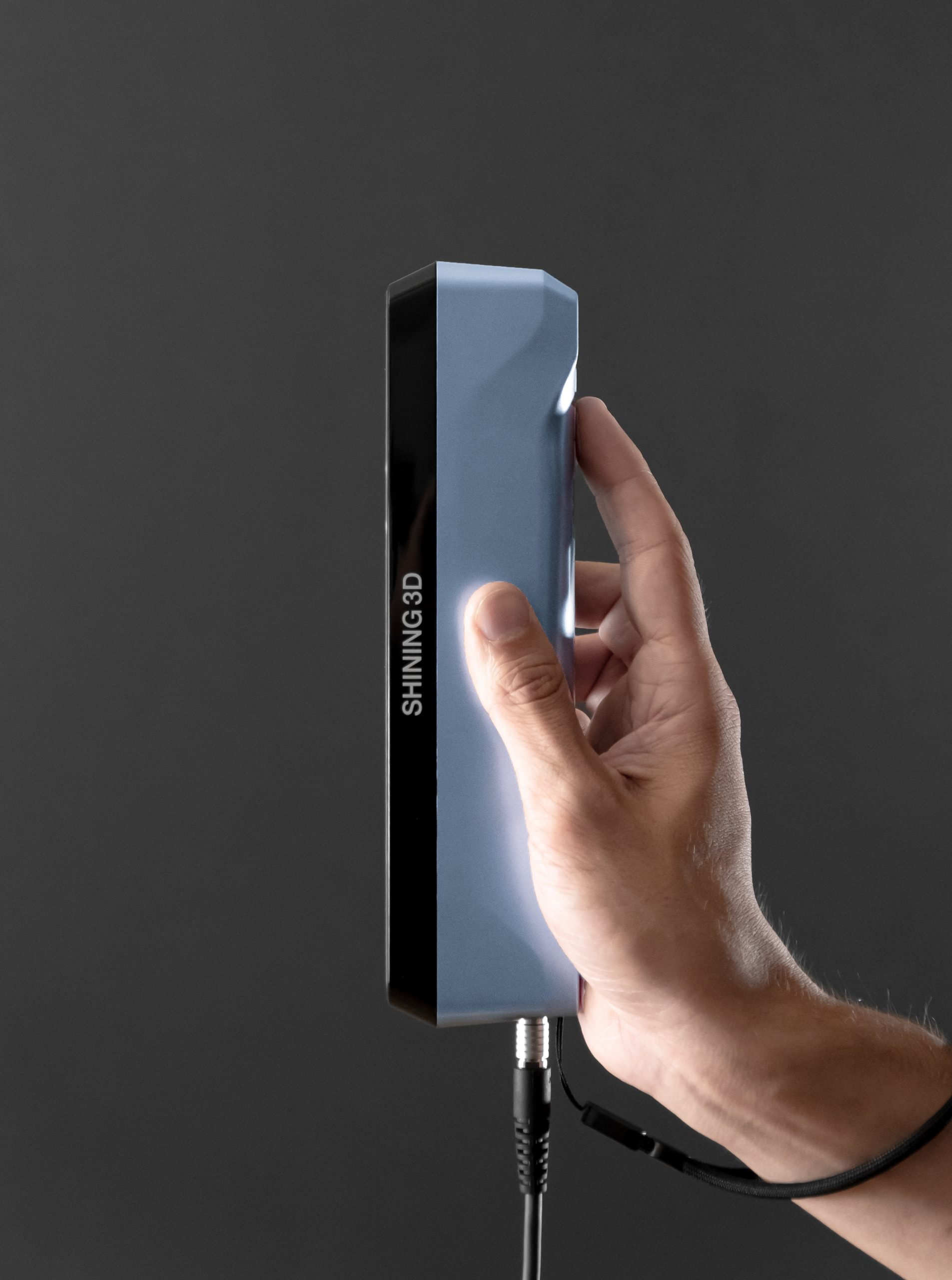

·Ergonomic design
·Only one USB cable for data transmission and power
·Clear and elegant workflow for scanning and post processing
·Easy to setup, plug and play

For an efficient workflow from scanning, to CAD, to 3D print, chooseEinStar

Specification

Light Source Infrared VCSEL structured light*
Point Distance 0.1mm – 3mm
Effective Working Distance 160mm – 1400 mm
Optimal Working Distance 400mm
FOV (under optimal work distance) 434mm x 379mm
Scan Rate Up to 14fps
Data Alignment Mode Texture/ Feature/ Hybrid Alignment/ Global Markers*
Full Colour Scanning Yes
Outdoor Scanning Yes
Output Formats OBJ, STL, PLY, ASC, 3MF, P3
Scanner Weight 0.5kg
Scanner Dimensions 220mm x  46mm x 55mm
Carrying  Case Dimensions 245mm x 245mm x 90mm
Interface USB 2.0 or above
Supported OS Windows 10/11 64-bit

*Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.

*Global Markers alignment is only available in Object Scan Mode.
