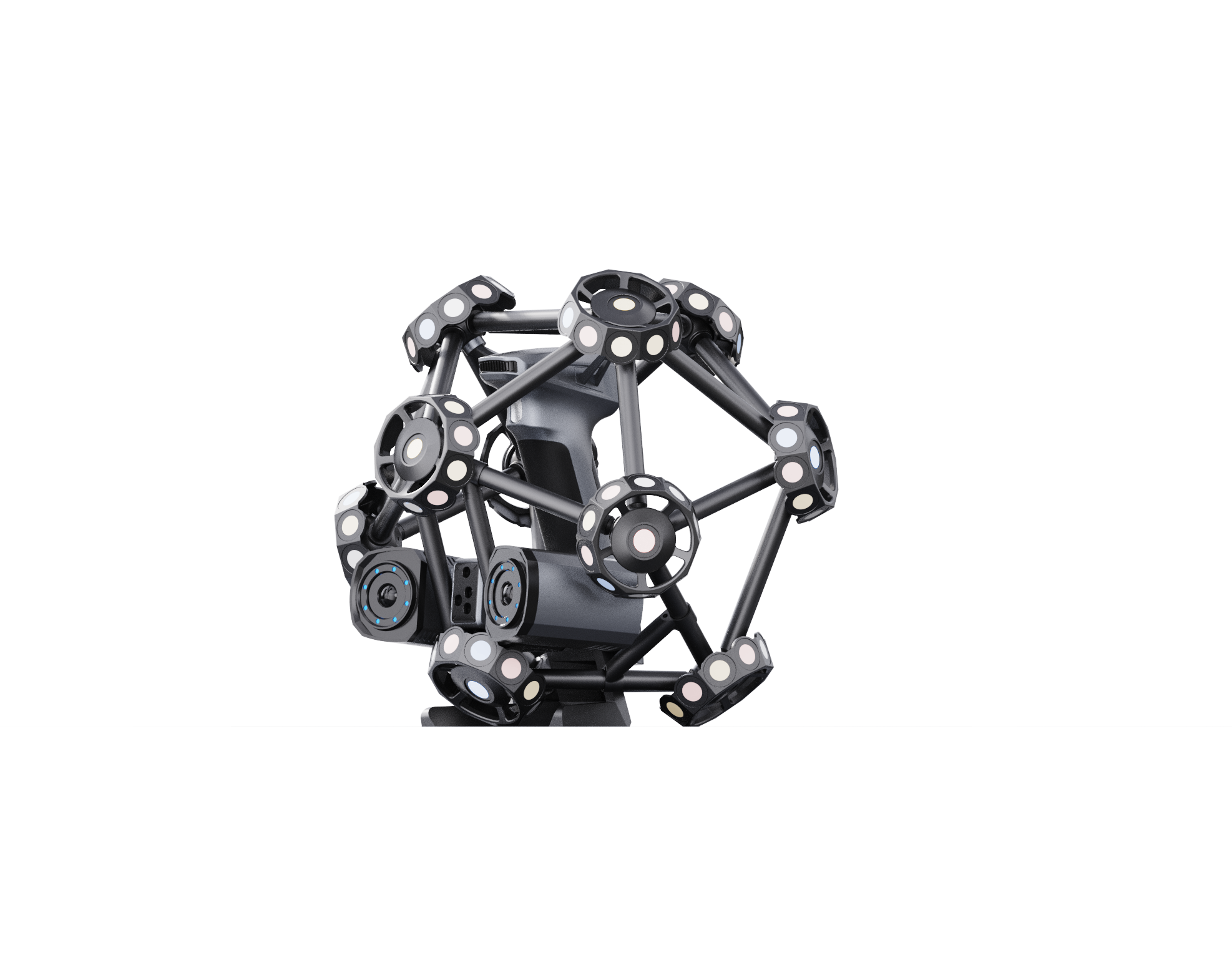

FreeScan Trak ProW
FreeScan Trak ProW is a wireless, marker-free 3D dynamic tracking & scanning system with an ultra-wide working range—built for fast, metrology-grade capture on large objects.
- Marker-free workflow via FreeTrak W dynamic tracking
- Max 8.6 m tracking distance & 206.7 m³ single-station tracking volume
- Integrated Video Photogrammetry (VPG) for consistent volumetric accuracy
- Up to 5,500,000 pts/s fast scanning
- Three modes: high-speed, detailed, and deep-pockets
- Wireless operation with power-bank support; real-time display
- Compatible with FreeProbe (optional)
- Metrology-grade accuracy for large-scale measurement
Track Smarter, Expand Further
- Extended tracking range and larger scanning volume for large-scale measurement.
- Wireless operation and power bank support for greater mobility.
- No markers needed — FreeTrak W dynamically tracks the TE25W scanner.
- High-speed scanning up to 5,500,000 points per second.
- Metrology-grade accuracy for demanding applications.
- Three scanning modes: high-speed, detailed, and deep pocket scanning.
Ultra-Wide Measuring Range
FreeScan Trak ProW delivers an impressive 8.6 m tracking distance and a 206.7 m³ working volume, allowing large objects to be scanned with fewer repositioning steps. This minimizes the need for leapfrog techniques and speeds up workflows for big-scale inspection and measurement.
Wireless Scanning Wherever You Go
FreeScan Trak ProW enables fast, cable-free scanning with real-time data transfer and power bank support for unrestricted mobility. An integrated display allows smooth operation in the field.
- Built-in computing modules
- Integrated wireless connectivity
- Flexible power supply options
- Real-time display screen
