Dobot M1 (Demo Unit)
DOBOT M1 is a cost-effective intelligent robotic arm with high precision and can apply multiple functions of assembly line work such as sorting and packing objects.
- High precision – Repetitive positioning accuracy 0.02mm
- Payload of 1.5kg
- Maximum working range of 400mm
Price on enquiry – please email [email protected]
DEFECT DETECTION
M1 can be used for product quality check. With industrial cameras, M1 can recognize defective products quickly.
AUTOMATIC PRODUCTION OPERATION
M1 can carry, assemble, sort and pack products instead of manual work, so that the production process can be simplified and production efficiency gets improved greatly.

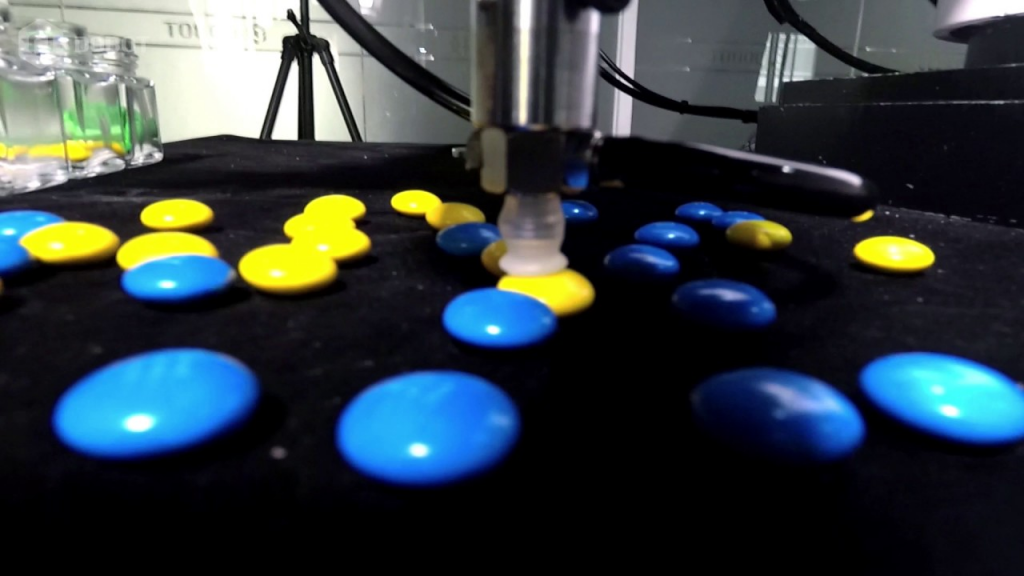

VISUAL SORTING
With the visual recognition suite, M1 can work like eyes to recognize and sort objects with different colors and shapes.
Specifications
| Dobot M1 | |
|---|---|
| Reach | 400 mm |
| Payload | 1.5 kg |
| Maximum magnitude, Mechanical limitation | |
| Reararm | -90°- 90° |
| Forearm | -140°-140° |
| Z-axis screw | 0mm- 250mm |
| End-effector rotation | unlimited |
| Maximum resultant speed of Forearm and Rear Arm | 2000 mm/s |
| Repeatability : | 0.02 mm |
| Collaborative function : | support sensor-free collision detection and teaching and playback |
| Input Requirements of Power Adapter : | 100 -240 V, 50/60 Hz |
| Communication interface : | Ethernet, RS-232C |
| I/O : | 22 digital outputs, 24 digital inputs, 6 ADC inputs |
| Software : | M1 Studio |
